Cloudonix Integration

Overview#

Cloudonix is a cloud communications platform that enables Menace Agents to connect to SIP communications platform, either on-premise or in the cloud. In addition, Cloudonix exposes a full set of voice APIs, that provide a full suite of call-control capabilities and more.

What you need#

• A Cloudonix account
• A Cloudonix domain UUID (or the domain name)
• A Cloudonix domain API Key (Bearer Token)
• A Cloudonix Voice Application on that domain (optional — leave the field blank in Menace Voice and we'll auto-create one for you on save, with the application url pre-set)
• A SIP carrier or trunk that owns your phone numbers and can route calls to Cloudonix

Authenticate callbacks before upgrading#

Cloudonix inbound, status, CDR, and transfer callbacks require an Authorization: Bearer header matching Webhook Secret on the call's Cloudonix configuration. Missing or invalid authentication is rejected before call state changes. The Cloudonix domain API token and X-CX-APIKey application credential are different credentials and are not accepted as webhook authentication.

For existing deployments, roll out the configuration field and synchronization first, prepare each configuration, and then enable the callback enforcement changes. Enter a random secret of at least 32 characters in Webhook Secret and save. Deploying enforcement before this preparation rejects existing inbound calls and call updates until the configuration is saved. Saving reads the domain profile, preserves its other settings, and synchronizes authorization-api-key. Cloudonix sends that value as its default Bearer authorization on customer HTTP callbacks, as documented in the Cloudonix domain profile reference. If the domain already has a different authorization-api-key, reuse that existing secret; the save rejects overwriting an unknown shared secret. Rotating a secret already managed by this configuration affects every integration on the domain.

Managed SIP provisioning generates and synchronizes the secret automatically. Existing managed domains need their provisioning refreshed before upgrading. Configurations without a secret cannot start outbound calls. No provider settings are changed merely by loading the app or receiving a webhook.

Keep the domain's cdr-endpoint pointed at your HTTPS /api/v1/telephony/cloudonix/cdr endpoint, and ensure your reverse proxy forwards Authorization. Secret synchronization does not replace your existing CDR or session endpoints. Confirm authenticated inbound, outbound completion, CDR and transfer delivery in a provider test environment before production rollout.

Estimated price#

Cloudonix connects Menace Voice to SIP infrastructure; it is not the source of a universal phone-number price. Your carrier bills the DID, trunk, and usage, and Cloudonix account pricing may be quote-based. Check your carrier's current rate card and your Cloudonix account before continuing.

Video Tutorial#

Watch this step-by-step guide to set up Cloudonix with Menace Voice:

Set up Cloudonix step by step#

1. Prepare your Cloudonix domain and SIP carrier#

1. Log in to your Cloudonix Console
2. Create or select the domain that will carry these calls.
3. Connect the SIP carrier or trunk that owns your number. Use the exact host, authentication, routing, and codec settings supplied by that carrier.
4. Confirm the number reaches the Cloudonix domain before adding Menace Voice.

2. Copy the credentials Menace Voice requests#

1. Copy the domain name, for example your-company.cloudonix.net.
2. Create or copy the domain API Bearer Token.
3. Optionally create a dedicated Voice Application and copy its Application Name. You can leave this blank and let Menace Voice create it.

Cloudonix explains Voice Applications in its official guide.

3. Connect Cloudonix in Menace Voice#

1. Open Phone numbers and click Add phone number.

2. Choose Cloudonix and continue.

3. Paste the Bearer Token and Domain Name.

4. Paste the Application Name, or leave it blank so Menace Voice creates a dedicated Application.

5. Enter the carrier-owned number with its country code.

6. Choose an agent for incoming calls and finish setup.

   Note

   If Menace Voice auto-created the Voice Application for you, you still need to bind your DNIDs to that application in the Cloudonix cockpit (see Step 2 of Inbound Calling Setup). The auto-created application is named dograh-<random> — its name is shown on the saved configuration.

4. Bind the number and test#

1. In Cloudonix, bind the number's DNID to the Voice Application used by Menace Voice.
2. Call the number from another phone and confirm the selected agent answers.
3. Place one outbound test call before using the connection in a campaign.

Inbound Calling Setup#

Cloudonix routes inbound calls per Voice Application — the webhook URL is set once on the application, and applies to every DNID bound to it. When you save an inbound workflow on a phone number, Menace Voice automatically pushes the webhook URL to your Voice Application's url (provided the credentials are correct), so you don't need to set the webhook by hand. If Menace Voice auto-created the application during configuration save, the url is already set and this push is a no-op — you only need to bind your DNIDs to the auto-created application.

Step 1: Set Up the Inbound Trunk#

1. Log in to your Cloudonix Console

2. Navigate to Trunks → Create Inbound Trunk and configure your inbound trunk with your voice service provider



Step 2: Create the Voice Application and Link DNIDs#

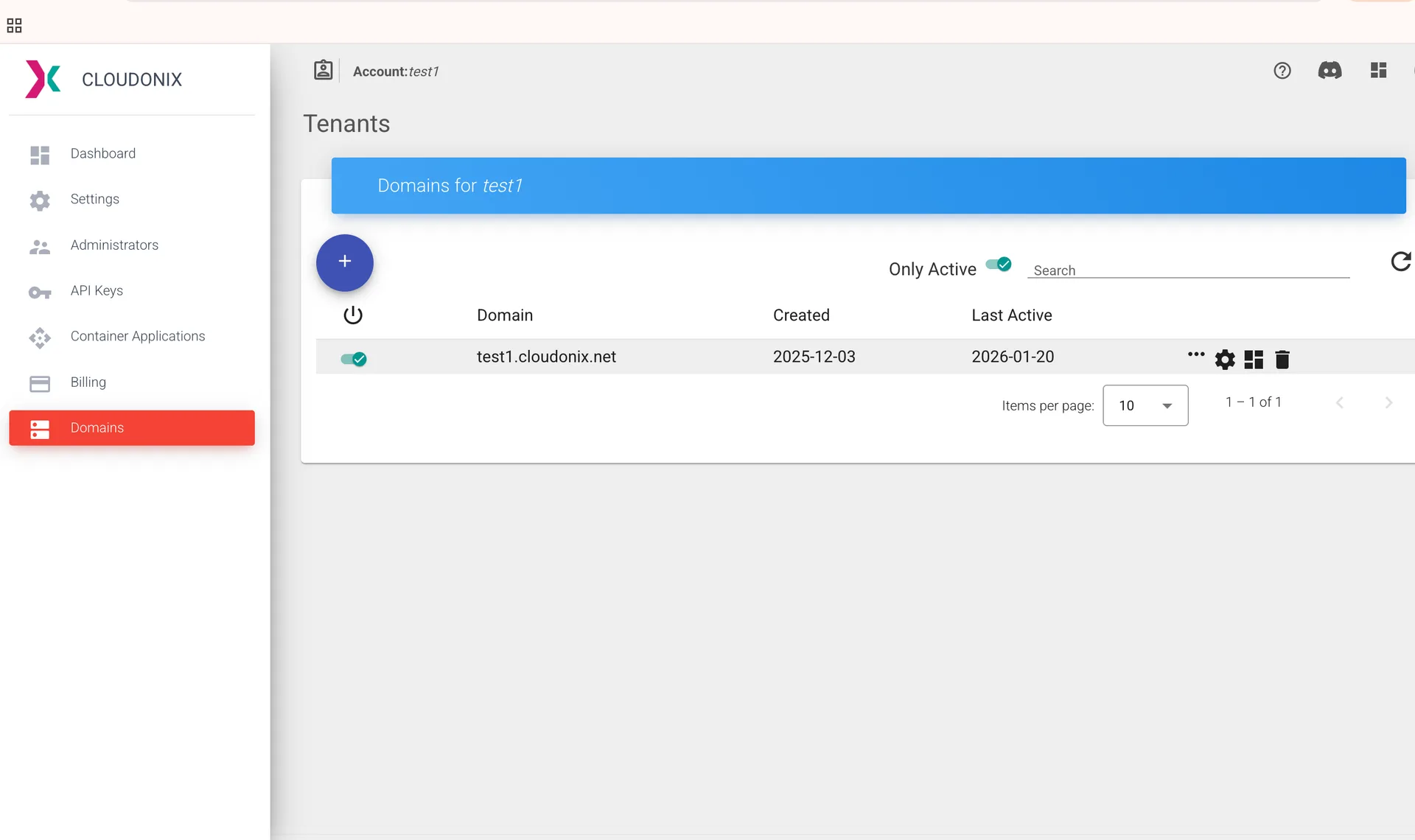

1. In the Cloudonix cockpit, select your domain and navigate to Applications

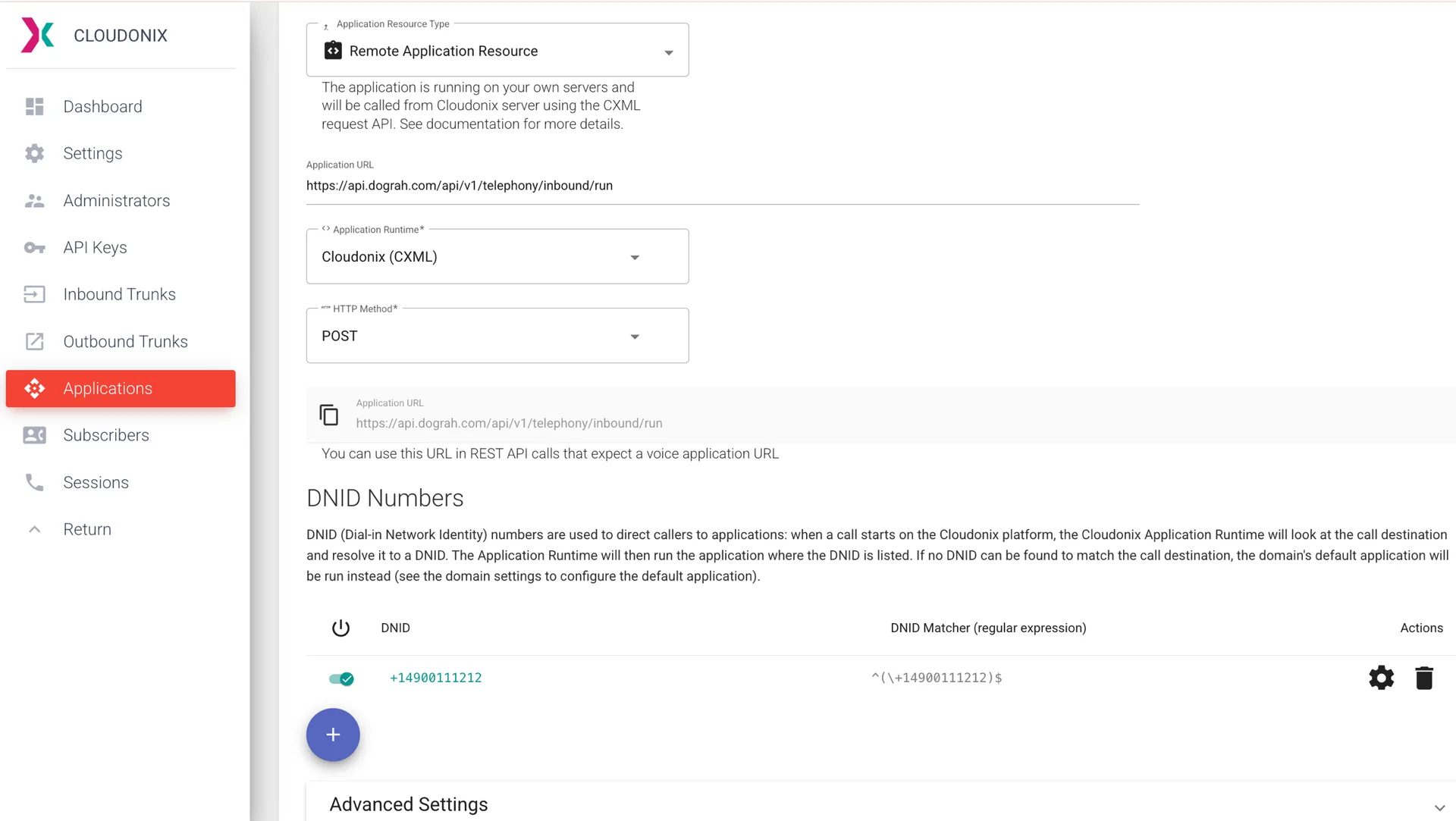

2. Create a new application (or open the existing one whose name you configured in Menace Voice) with these settings:

   • Application Resource Type: Remote Application Resource
   • Application Runtime: Cloudonix (CXML)
   • Application URL: https://voice.menaceui.com/api/v1/telephony/inbound/run
   • HTTP Method: POST

3. Under DNID Numbers, add each phone number (DNID) you want to route through this application

4. Save

   Note

   The Application URL is what Menace Voice's auto-push updates in Step 3 — you can leave it blank during creation and let the auto-push fill it in, or paste the URL above so the application is usable immediately. Either works. Self-hosted Menace Voice deployments use their backend domain in place of voice.menaceui.com.



Step 3: Assign an Inbound Workflow to the Phone Number in Menace Voice#

1. Go to /telephony-configurations and open your Cloudonix configuration
2. In the Phone numbers section, edit the number that should receive inbound calls
3. Set its Inbound workflow to the agent that should answer
4. Save

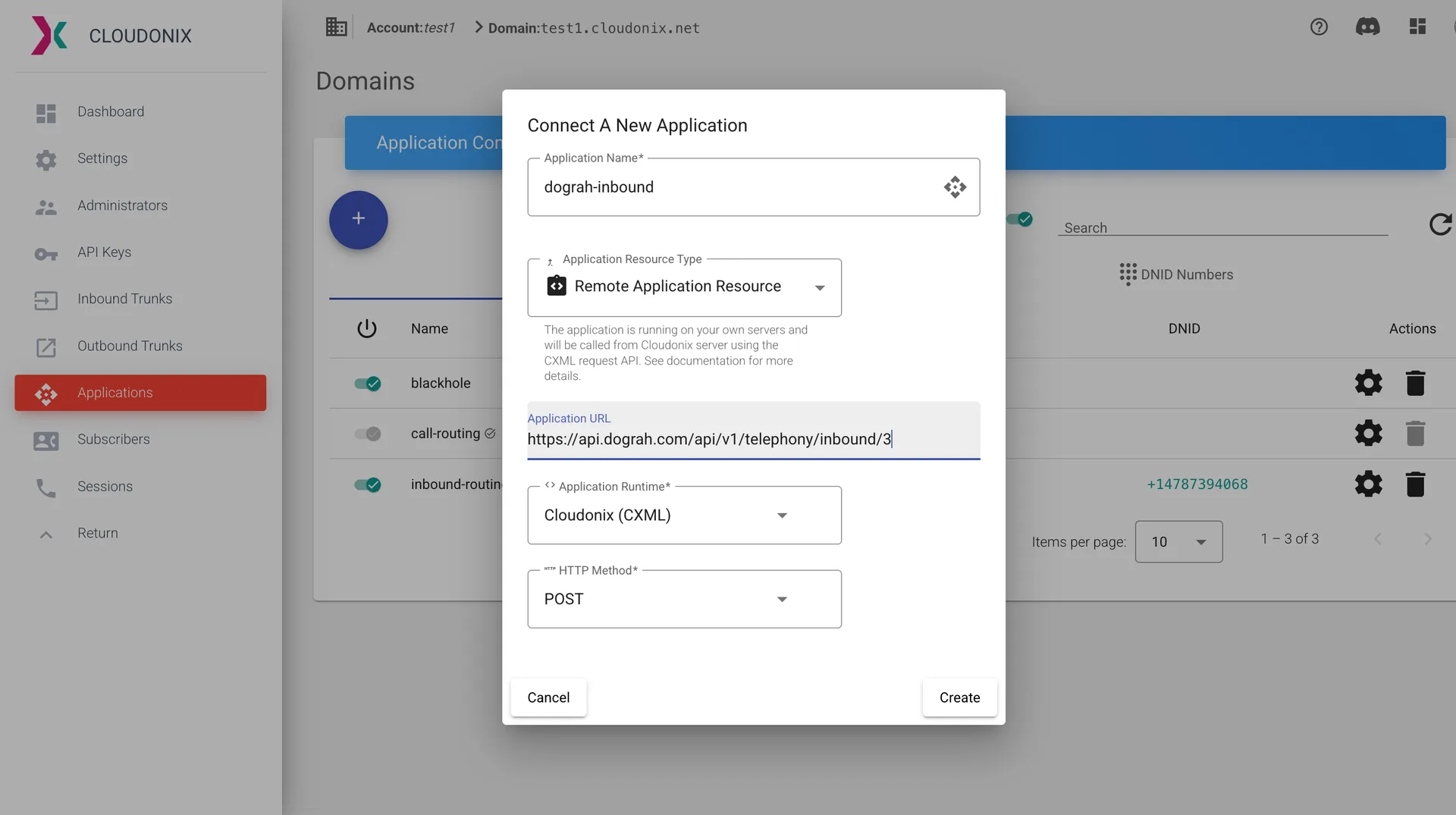

Step 4: Verify the URL on the Voice Application#

1. Open your Cloudonix cockpit and navigate to your domain's Applications

2. Open the application whose name you configured in Menace Voice

3. Confirm:

   • URL is set to: https://voice.menaceui.com/api/v1/telephony/inbound/run
   • Method is POST
   Note

   Menace Voice pushed this URL automatically when you saved the inbound workflow in Step 3. The same URL is shared across every DNID bound to that application — Menace Voice routes each inbound call to the right agent based on the called number's inbound workflow assignment. If the field is empty, shows a different URL, or Menace Voice surfaced a sync warning on save, the auto-push failed — most often because the Bearer Token, Domain ID, or Application Name in Menace Voice is incorrect. Paste the URL into the field yourself, set the method to POST, and save. On self-hosted Menace Voice, replace voice.menaceui.com with your backend domain.



Step 5: Verify Setup#

• Ensure your Menace Voice instance is publicly accessible
• Verify any firewalls allow Cloudonix's IP ranges
• Confirm your inbound trunk is active and receiving calls

Test Inbound Calling#

1. Call your configured phone number from another phone
2. Verify your Menace Voice agent answers and responds
3. Check call logs in both Menace Voice dashboard and Cloudonix Console
4. Confirm clear two-way audio communication

Troubleshooting#

Best Practices#

• Test your configuration with a single call before running campaigns
• Monitor Cloudonix Sessions for usage
• Use a dedicated Voice Application for Menace Voice so the shared url doesn't conflict with other systems
