Overview#
The Tuner integration node automatically sends your completed call data (transcript, metadata, and call outcomes) to Tuner after each call finishes. This lets you monitor agent performance, run evaluations, and track quality trends without any custom code.
Once the node is configured, you can also let Tuner call your agent with generated caller scenarios and score how it handles them — see Simulations below.
Prerequisites#
- A Tuner account with an active workspace
- A Menace Voice agent workflow
Setup#
1. Create an agent in Tuner#

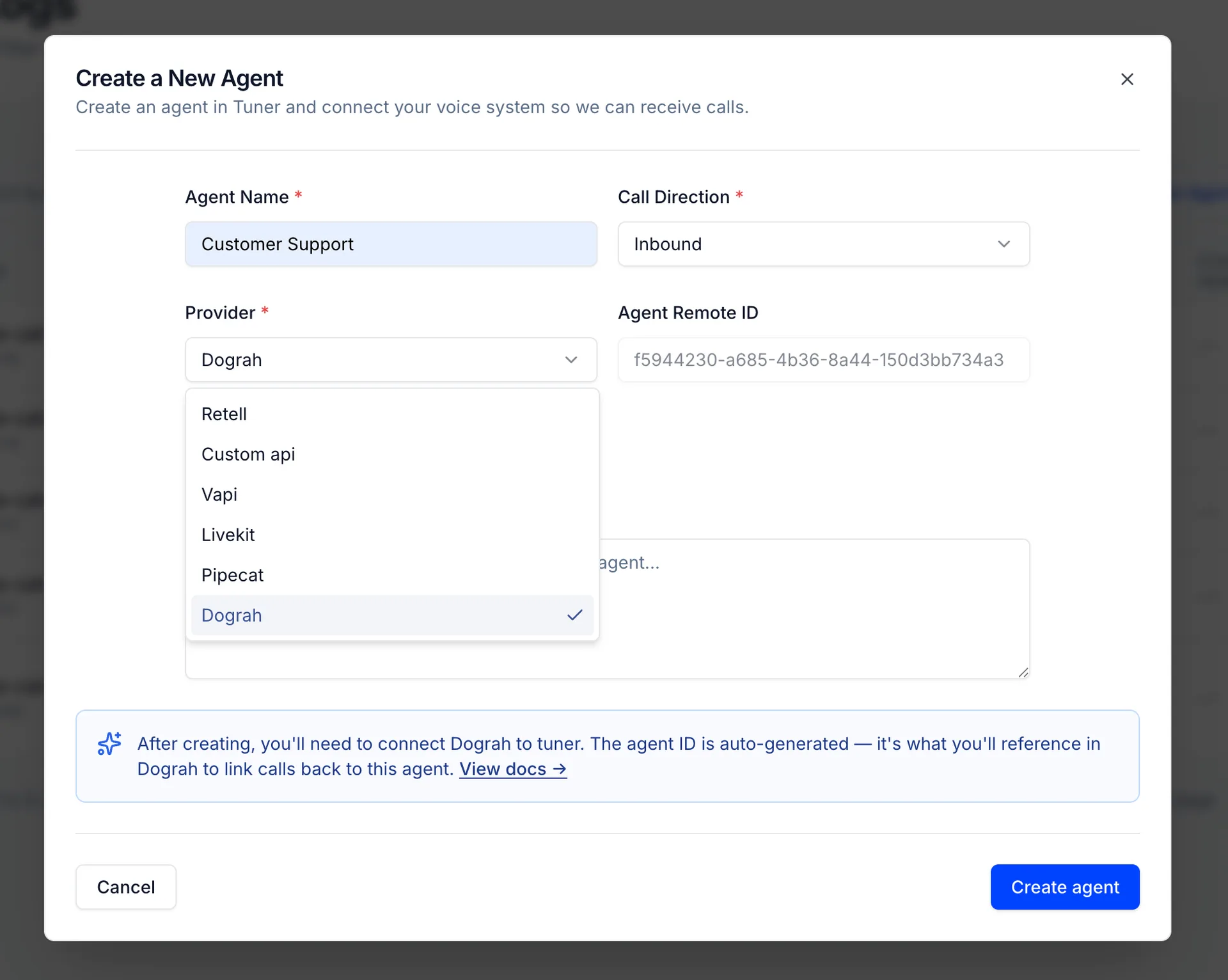

Log in to Tuner and create a new agent. When configuring the agent, set the Provider to Menace Voice. Enter your Agent Name and choose the Call Direction (Inbound or Outbound) for your setup. The Agent Remote ID is auto-generated after you create the agent.
2. Gather your Tuner credentials#
You'll need three values from your Tuner account:
| Credential | Where to find it |
|---|---|
| Agent ID | Agent Settings → Agent Connection → Agent Remote ID |
| Workspace ID | Workspace Settings → General Settings → Workspace ID |
| API Key | Workspace Settings → Tuner API Key |

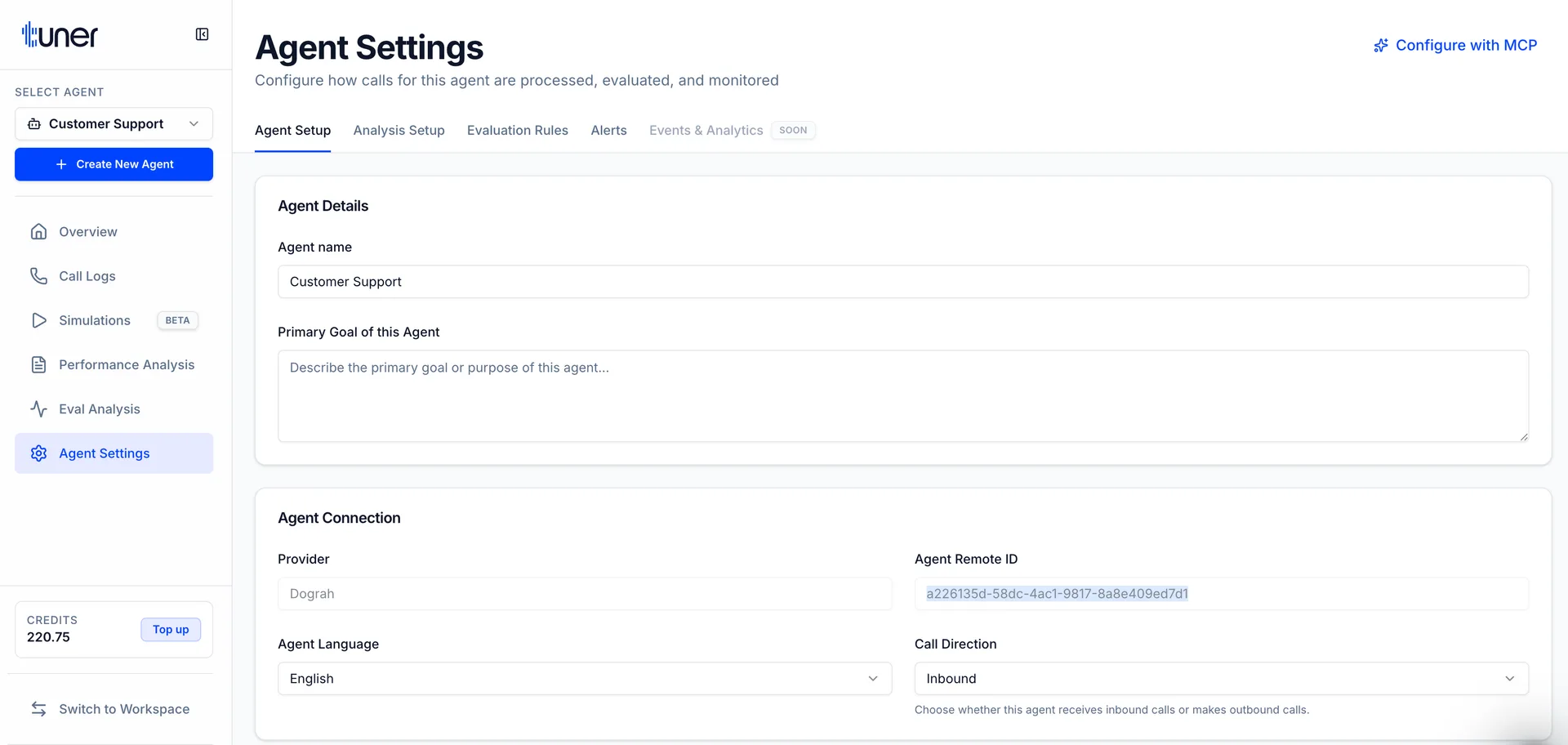

Agent Remote ID — open Agent Settings for your agent:

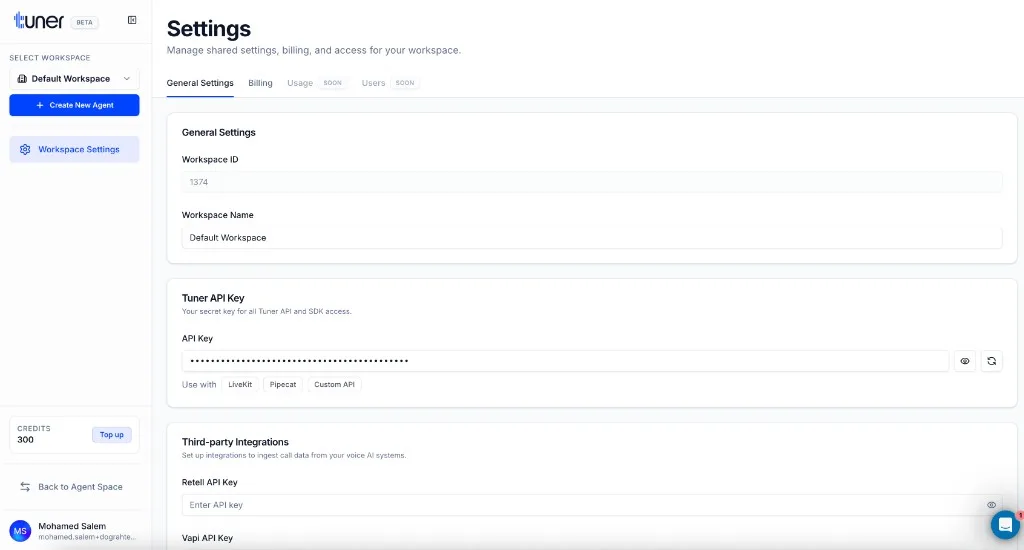

Workspace ID and API Key — open Workspace Settings:
3. Add the Tuner node to your workflow#

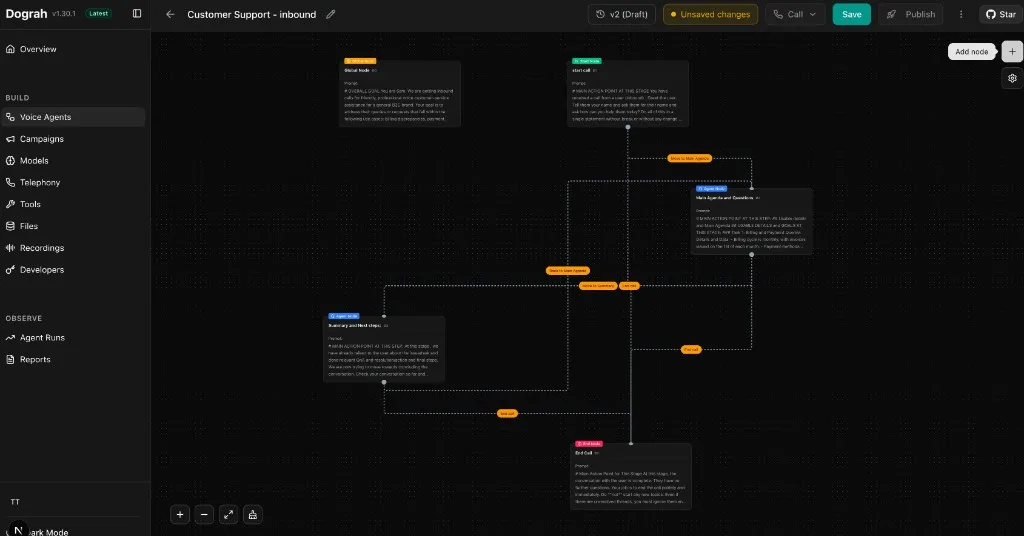

In your Menace Voice workflow editor, click Add node and scroll to the Integrations section. Select Tuner.

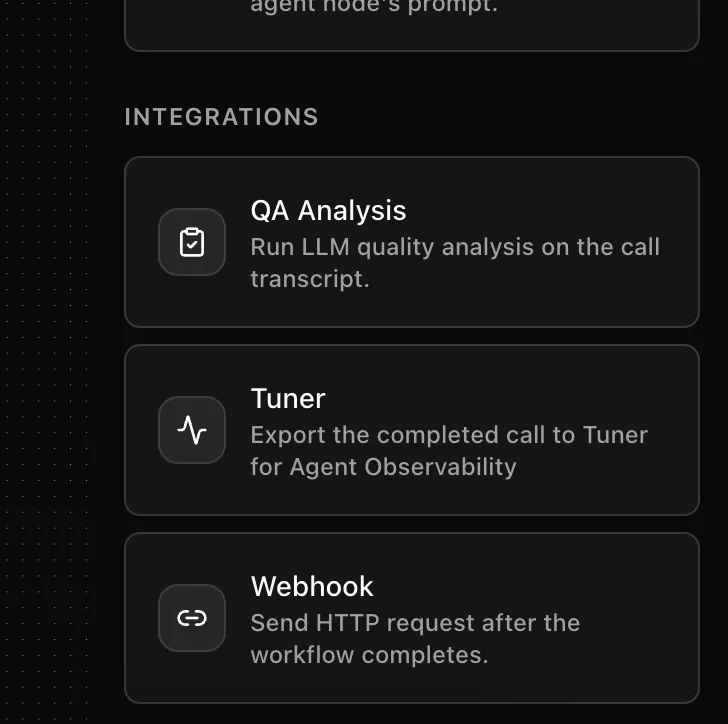

Scroll to Integrations and select Tuner:
The node appears on your canvas with a Not configured badge:
4. Configure the node#

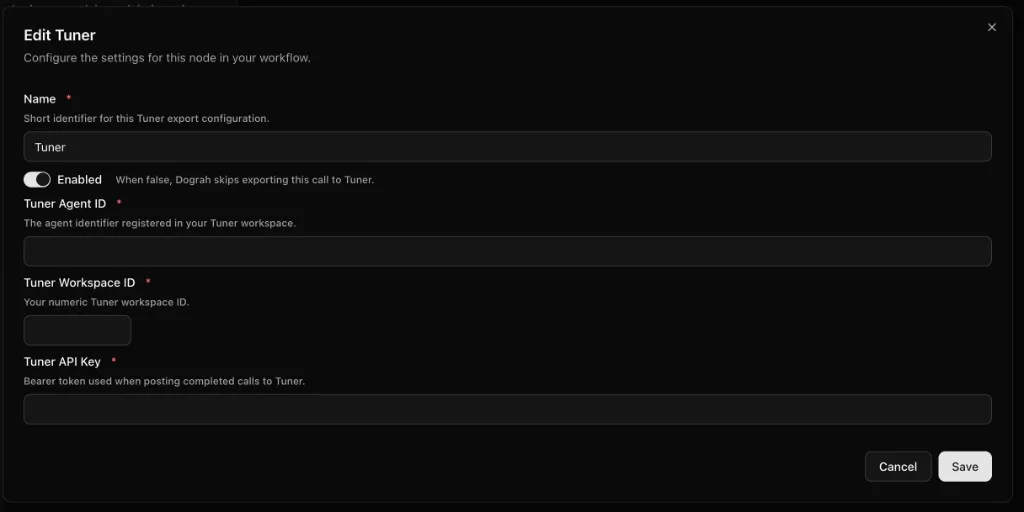

Click on the Tuner node and fill in the following fields:
- Tuner Agent ID — The Agent Remote ID from Tuner
- Tuner Workspace ID — Your numeric workspace ID
- Tuner API Key — Your workspace API key
- Enabled — Toggle on to activate the export
Click Save, then Publish your workflow.
5. Verify the connection#
Make a test call through your agent. Once the call completes, check the Call Logs tab in your Tuner agent dashboard. The call should appear within a few moments.
Simulations#
Everything above sends real calls to Tuner. Simulations run the other direction: Tuner places a call into your agent over SIP, plays the part of a caller following a generated scenario, and scores the result. Your agent answers exactly as it would for a customer.
Menace Voice does not speak SIP itself — Cloudonix does it on Menace Voice's behalf. So the address Tuner dials belongs to Cloudonix, and what you set up below is a route through it to one specific agent.
Simulations use the inbound path, which runs on the Cloudonix SIP domain Menace Voice provisions for every organization. You do not need a SIP carrier or a phone number — unlike outbound calling, which requires your own trunk. See Menace Voice Managed SIP.
Before you start#
- The Tuner node configured and enabled on your workflow, as set up above
- In Tuner, the same agent with its Call Direction set to Inbound
- An agent that already works — test it from the agent editor first
An inbound simulation only attaches to its scenario when the Tuner agent's call direction is Inbound. Set to Outbound, Tuner matches the returned call on a different field and files it as ordinary traffic instead.
1. Add an extension for simulations#
Go to Telephony configurations and open Menace Voice Cloudonix SIP. Under Phone numbers, choose Add phone number and enter a short extension such as 9001.
You do not need a real phone number. That field accepts SIP URIs and plain extensions alongside PSTN numbers, and an extension is the simplest thing to point a simulation at. Menace Voice registers it with Cloudonix for you.
2. Point the extension at your agent#
Edit the extension you just added, set its Inbound workflow to the agent that should answer, and save. This is the step that tells Cloudonix where to route calls for that extension.
3. Publish the workflow#
In the workflow editor, choose Save, then Publish.
Inbound calls always run the published version of a workflow, never the draft. If the Tuner node is only in your draft, calls will connect and the conversation will happen normally — but nothing will ever reach Tuner, and no error appears anywhere.
4. Build the SIP URI#
Expand SIP connectivity on the configuration page, choose your region, and copy the inbound hostname. Combine it with the extension from step 1:
| Part | Where to get it | Notes |
|---|---|---|
| Extension | Phone numbers — the entry from step 1 | Must match exactly. This decides which agent answers. |
| Inbound hostname | SIP connectivity → Hostname | Unique to your organization, and changes with the region. |
| Port | SIP connectivity → Ports | Omit only when it is 5060; otherwise required. |
Set the region before copying anything — every value on the panel is region-specific, and the port changes with it:
| Region | Hostname ends with | Port | Include the port? |
|---|---|---|---|
| Global | .sip.cloudonix.net | 5060 | Optional — it is the default |
| India | .in.dimi.tel | 9060 | Required |
| UAE | .uae.dimi.tel | 9081 | Required |
On India or UAE, leaving the port off sends the call to port 5060, where
nothing is listening — and the failure looks like an unreachable agent
rather than a wrong address. Add :9060 or :9081 to the URI.
Your inbound hostname accepts calls without a password — being unguessable is what protects it. Treat it as sensitive and share it only with systems that need to call your agents.
5. Save the URI in Tuner#
In Tuner, open Agent Settings → SIP Settings, paste the address into SIP URI, and choose Verify & Save. Tuner immediately places a short test call, so this single action checks the whole path.
Leave Username and Password empty — Menace Voice's inbound endpoint does not use SIP authentication.
Known issue in Tuner. With both auth fields blank, verification currently
fails with "endpoint did not answer". Entering any non-empty values — for
example tuner and tuner — works around it. Menace Voice never checks them, so
the values are irrelevant. Clear both fields once Tuner ships the fix.
6. Run a simulation#
Start a run from Tuner's Simulations tab. Each scenario becomes a real call into your agent, and completed calls appear in that table with transcript, latency, and evaluation results.
How calls are matched to scenarios#
Nothing to configure — this is automatic. Cloudonix reports the caller's SIP call id to Menace Voice, and Menace Voice includes it when it exports the finished call. Tuner uses it to attach the call to the scenario that placed it. Without it, the call would still be ingested, just filed as ordinary production traffic.
Disabling the integration#
To temporarily stop exporting calls to Tuner, open the Tuner node configuration and toggle Enabled off. Your credentials are preserved — toggle it back on anytime to resume.
Troubleshooting#
| Issue | Solution |
|---|---|
| Calls not appearing in Tuner | Verify all three credentials are correct with no extra whitespace |
| Node shows "Not configured" | Open the node and fill in Agent ID, Workspace ID, and API Key |
| Workflow not sending data | Make sure the workflow is published, not just saved as a draft |
| Wrong agent in Tuner | Confirm the Tuner agent's Provider is set to Menace Voice |
Simulation issues#
| Issue | Solution |
|---|---|
603 Declined | Cloudonix found the route but could not fetch call instructions from Menace Voice. On a self-hosted deployment, check that your backend is publicly reachable — see below |
| "Endpoint did not answer" on Verify & Save | With blank auth fields this is the known Tuner issue. Otherwise confirm the extension exists, has an inbound workflow assigned, and that the region's port is in the URI |
| Agent answers but nothing reaches Tuner | The Tuner node is not in the published version of the workflow. Publish and try again |
| Calls land in Call Logs instead of Simulations | Confirm the Tuner agent's Call Direction is Inbound |
A 422 logged after Verify & Save | Harmless. The verification call lasts about a second with no conversation, so there is no transcript for Tuner to accept |
Self-hosted deployments#
Cloudonix must reach your backend over the public internet twice per call: once for the webhook when the call arrives, and again for the audio stream. A backend on localhost receives neither.
The address is recorded by Cloudonix when you save the inbound workflow, so whenever your public address changes you must do both of these:
- Update
BACKEND_API_ENDPOINTand restart the backend - Re-save the inbound workflow on the extension, which pushes the new URL to Cloudonix
Skipping the second step leaves Cloudonix calling the old address, and every call fails with 603. A tunnel with a fixed hostname avoids it entirely.
Learn more#
- Tuner — The observability, simulation, and testing layer for voice
- Tuner documentation — Complete Tuner platform docs
